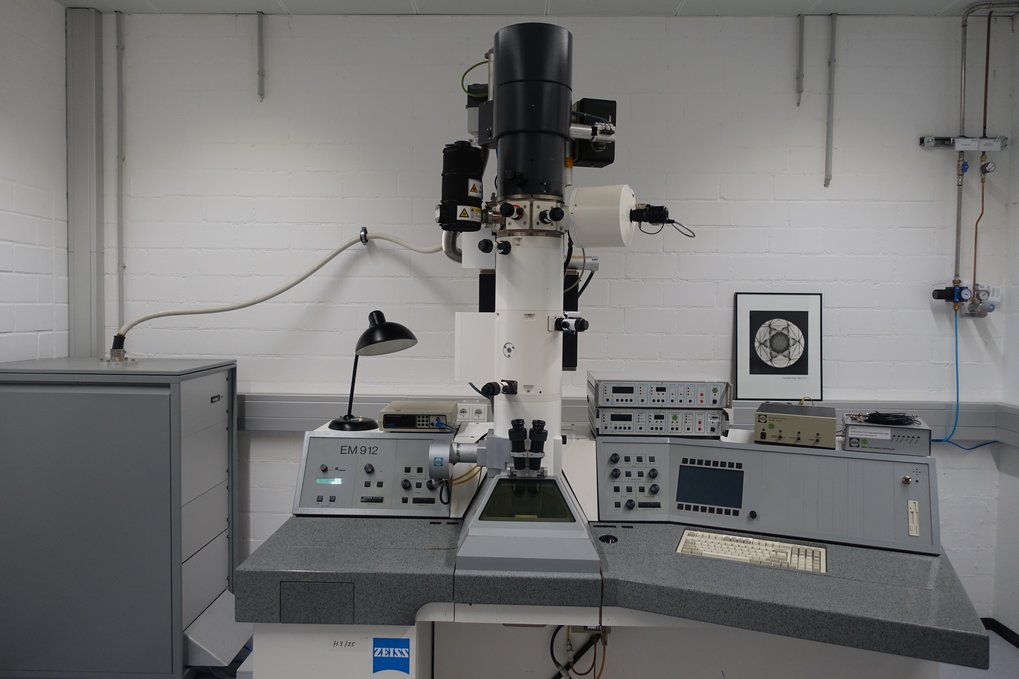

Zeiss 912 Omega

The EM 912 TEM is an excellent microscope for tomography. It has the highest possible tilt range of our TEMs. This TEM has a LaB6 source and is equipped with an Omega in-column energy filter. It can accept heating, cooling and rotation specimen holders as well as the high-tilt holder required for tomography.

Gun LaB6
Image resolution 0.37 nm
Energy resolution < 1.4 eV
Tilt angles 75°/30°
Heating holder 900°C
Cooling holder -160°C
Other holders rotation, tomography
Energy filter Omega in-column
EDX system Noran
