Using NaTl as an example, Zintl developed the concept that was later named after him, and which was subsequently generalized by Klemm. The Zintl-Klemm concept belongs to one of the most successful concepts in solid state chemistry. Assuming that all valence electrons of a donor (metal) were transmitted to an acceptor (nonmetal or semimetal), one can understand and predict essential elements of the topologies of the resulting anionic partial structures, in boundary of metallic and ionic bonding. The most frequently used tool to control the connectivity of the anionic partial structure is the variation of the ratio metal / nonmetal in the compound, and therefore the direct tuning of the valence electron concentration at the anions. Another possibility is the oxidation or reduction of an already existing Zintl phase (Barium phosphides), or the use of oxygen as a third component to generate a further degree of freedom (Thallides).

Ba3P3I2 and Ba5P5I3: stepwise oxidation of barium phosphide with iodine

The Zintl phases Ba3P2 with isolated P3– ions or Ba4P3 which contains P3– ions and P24– dumbbells, react with iodine in a direct way to Ba3P3I2 and BaI2 (eq. (1) and (2)). A characteristic detail of the new compound are P3 chains; therefore an oxidation of the anionic partial structure results. The consequence is a P—P bonding formation and an enlargement of the phosphorus chains. The reaction was carried out at 1050 K, which is obviously below the melting points of the binary phosphides. Thus, the planned oxidation of a Zintl anion in the solid phase could be successfully realized.
     To avoid the formation of BaI2 as a byproduct, a mixture with the composition 'BaP', containing Ba3P2, Ba4P3 and Ba3P4 can be used, too (eq. (3)). The use of P2I4 as an oxidation reagent is also possible (eq. (4)).

(1)   3 Ba3P2 + 5 I2 ---> 2 Ba3P3I2 + 3 BaI2

(2)   Ba4P3 + 2 I2 ---> Ba3P3I2 + BaI2

(3)   3 BaP + I2 ---> Ba3P3I2

(4)   2 Ba3P2 + P2I4 ---> 2 Ba3P3I2

Reducing the amount of iodine has a direct influence on the anionic partial structure. Therefore one obtains, when using the composition Ba3P 3I1.8 the new compound Ba5P5I3, which contains additional P4 chains besides P3.

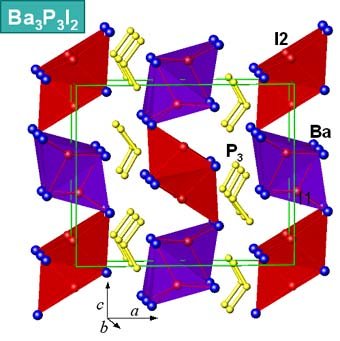

     The new compounds Ba3P3I2 and Ba5P5I3 are sensitive to air and moisture. They crystallize in new structure types: Ba3P3I2 (oP32; Pnma; a = 1719.5(5) pm; b = 462.4(2) pm; c = 1427.2(4) pm; Z = 4, Ba5P5I3 (mC52; C2/m; a = 4266.4(13) pm; b = 456.3(2) pm; c = 943.1(3) pm; β = 92.20(3)°; Z = 4. Both can be described as double salts of hypothetic Zintl phases ('Ba2P3' or 'Ba7P10') and a halide (BaI2). Characteristic structural features are  P3 and P4 chains, corresponding to Ba3[P3]I2 and Ba10[P3]2[P4]I6, respectively.

This example of the oxidation of barium phosphide with iodine shows, that this concept works with solid Zintl phases, too. The electron configuration of, e. g., P2– or P3– corresponds to that of a halogen or a halide, respectively. During the oxidation one moves to the left in the periodic table, and the connectivity increases.

Alkali metal thallide oxides

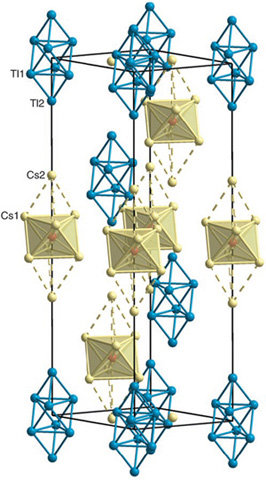

Cs8Tl8O crystallizes in a novel structure type. The oxygen atoms are surrounded by an octahedral arrangement of six cesium atoms. Two further Cs atoms are located above and below each oxygen atom. The resemblance of the Cs—O separation in Cs8Tl8O (290 pm) to those in Cs2O (287 pm) is indicative for a full ionization of the Cs atoms with a charge transfer to oxygen atoms and formation of cationic [OCs6+2]6+ groups. The electrons released are accommodated by the, previously unknown, isolated [Tl8]6– oligoanion. Topologically, the {Tl8} cluster can be regarded as being generated by condensation of an octahedron with two tetrahedra (bicapped octahedron). The clusters are arranged analogous to a cubic-closed packing, with the octahedral holes completely occupied by {OCs6+2} groups. The structure can therefore be understood as an NaCl derivative, with one of the threefold axes of the originally cubic system being elongated.


A10Tl6O2 (A = K, Rb)

The new alkali metal thallide oxides, A10Tl6O2 (A = K, Rb), crystallize in a unique structure consisting of hypoelectronic [Tl6]6– clusters in the shape of compressed octahedra, together with oxygen-centred alkali metal octahedra that have been identified as constitutive of alkali metal sub-oxides.
